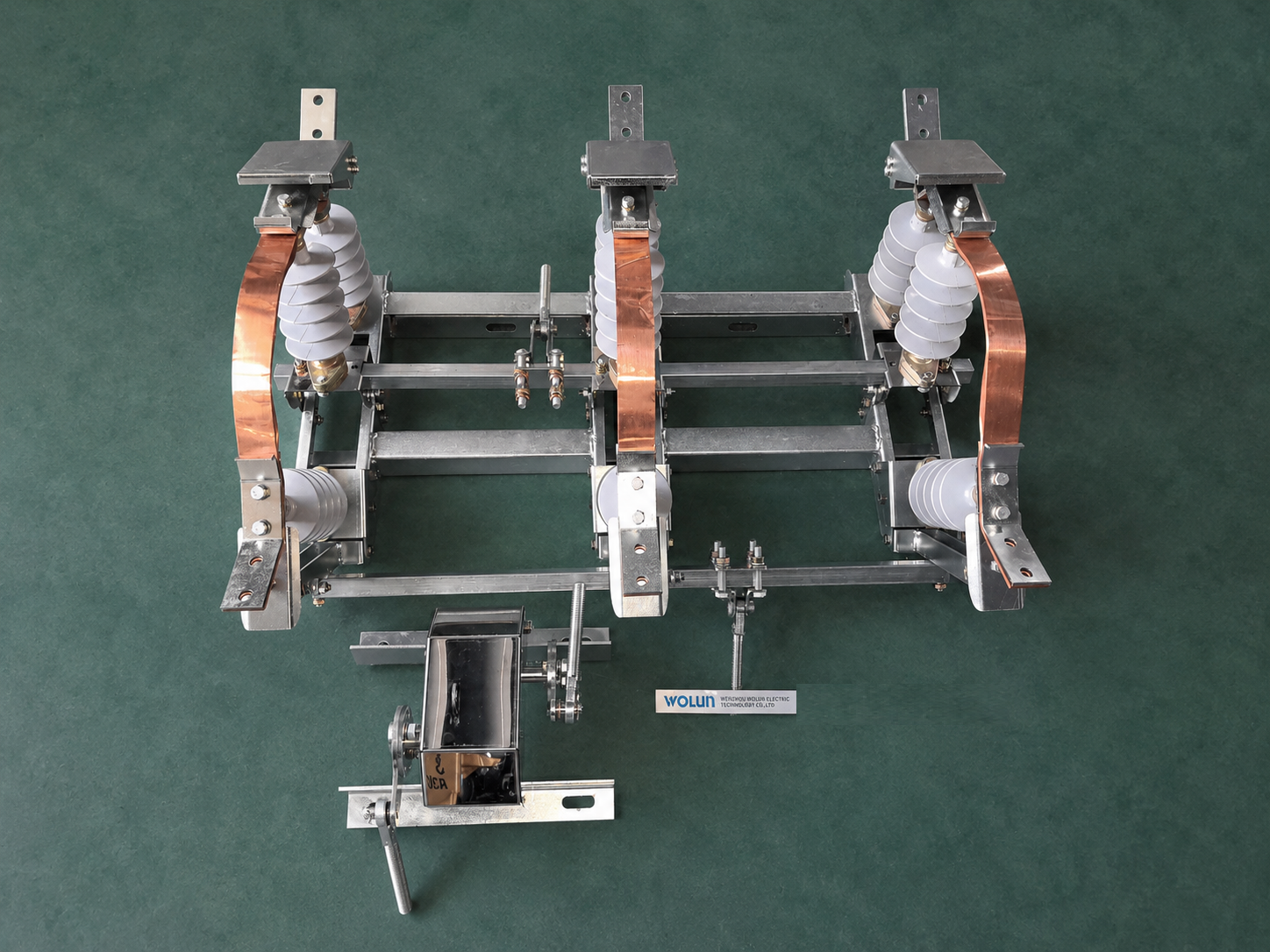

RLK-10 Outdoor Rocking Type Disconnect Switch

Reliable Isolation for 10kV Distribution Networks

The RLK-10 Outdoor Rocking Type Disconnect Switch is designed for switching de-energized sections of medium-voltage power networks, providing visible isolation and safe maintenance operations. Featuring a rocking-type mechanism, polymer insulators, and a corrosion-resistant galvanized steel structure, the RLK-10 is widely used in overhead distribution lines, pole-mounted substations, and utility networks. It can also be equipped with earthing switches for enhanced operational safety.

Product Features

✓ Visible Isolation Gap

Provides a clear and reliable disconnection point for maintenance and safety procedures.

✓ Rocking-Type Design

Special oscillating contact structure ensures smooth operation and excellent mechanical reliability.

✓ Polymer Silicone Insulators

Hydrophobic silicone rubber insulation offers superior performance in polluted, coastal, and humid environments.

✓ Hot-Dip Galvanized Steel Frame

All steel components are protected against corrosion for long service life under harsh outdoor conditions.

✓ Maintenance-Free Bearings

Stainless steel shaft and polymer bushings eliminate the need for lubrication during operation.

✓ Optional Earthing Switch

Available with one-side or two-side grounding blades to meet utility safety requirements.

✓ Suitable for Severe Climates

Designed to withstand ice, dust, humidity, strong wind, and industrial pollution.

Technical Specifications

Values are based on common RLK-10 configurations and industry specifications.

Construction

The RLK-10 consists of:

• Three-pole galvanized steel frame
• Silicone rubber insulators
• Copper contact blades
• Mechanical operating linkage
• Manual operating mechanism
• Optional grounding switch assembly

The rocking motion design ensures stable contact pressure and minimizes wear during operation.

Applications

• 6kV–10kV overhead distribution lines
• Pole-mounted transformer substations
• Rural electrification projects
• Utility distribution systems
• Industrial power distribution networks
• Renewable energy collection systems

Ordering Information

When requesting a quotation, please specify:

1. Rated voltage (6kV / 10kV / 12kV)
2. Rated current (400A or customized)
3. Earthing switch required or not
4. Polymer or porcelain insulators
5. Mounting arrangement
6. Pole spacing requirement
7. Operating mechanism type
8. Ambient temperature and altitude
9. Applicable standard (IEC, GOST, etc.)

Why Choose Wolun Electric?

• Professional medium-voltage equipment manufacturer
• OEM & ODM service available
• IEC-compliant production
• Strict factory testing
• Competitive export pricing
• Fast delivery worldwide
• Technical support for utility and EPC projects

FAQ

What is the purpose of an RLK-10 disconnect switch?

The RLK-10 is used to isolate de-energized sections of medium-voltage power systems and provide a visible break for maintenance safety.

Can the RLK-10 interrupt load current?

Standard RLK-10 disconnectors are designed for no-load switching. Special arc-extinguishing versions can interrupt limited load currents.

Is a grounding switch available?

Yes. Versions with one-side or two-side earthing switches are available.

Can polymer insulators replace porcelain?

Yes. Polymer insulators provide lighter weight, better pollution resistance, and reduced maintenance requirements
